An auto-retracting system uses a built-in spring reel inside a tough metal case. The inside spring automatically rolls up extra strap material when you let go. This technology replaces regular ratchet straps to prevent dangerous tangles and stop tripping accidents. Modern retractable ratchet straps make setting up daily transport much faster.
Workers pick specific retractable straps to move different loads for many jobs. Main types include light-duty 1-inch models, heavy-duty 2-inch options, boat tie-downs, and track-mounted designs. Tieing down commercial cargo requires careful choices based on load limits, breaking strength, and hook shapes. Matching the right retractable straps to the total weight ensures safe travel on the road.
Key Takeaways
- Retractable straps use inside spring reels to pull up extra webbing by themselves.
- Heavy-duty 2-inch straps tie down large business cargo safely and help drivers save time.
- Boat straps have rust-proof coatings to shield boat trailers from the harsh effects of salty water.
- Light-duty 1-inch straps securely hold everyday items, such as dirt bikes and small furniture pieces.
- Fixed tie-downs stop untied bands from dragging around, keeping your workspace clean and secure.

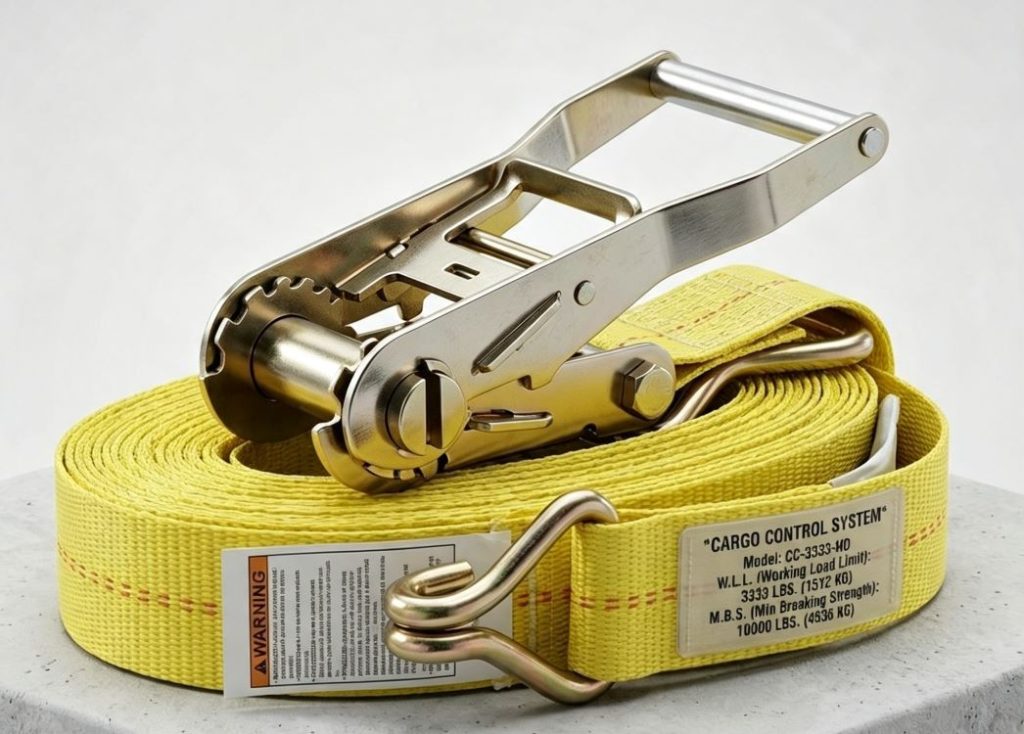

Heavy-Duty Auto Retractable Ratchet Straps
2-Inch Straps for Commercial Loads
Truck drivers choose auto retractable ratchet straps to hold huge cargo safely. Flatbed drivers secure heavy items like steel coils, lumber, and construction gear daily. These heavy-duty models use 2-inch wide, tough polyester webbing that resists wear. FTrade sells these strong items to wholesale buyers for reliable strength. This heavy-duty hauling gear handles a 3,335 lbs Working Load Limit and a 10,000 lbs assembly breaking strength. FTrade tests every batch using ISO-certified pre-shipment load tests to ensure great performance.
Regular ratchet straps need manual threading, which wastes a lot of driver time. Drivers save 15 to 25 minutes per delivery by switching from standard ratchet straps. Also, truck fleets with 20 vehicles save over 1,600 work hours each year using retractable tie-down systems. Workers pull the strap over cargo, hook the end points, and pump the handle. The inside mechanism holds cargo tight without loose webbing ends flapping around in the wind.
High-Capacity Recoil Mechanisms
Moving heavy gear requires strong ratchet straps with reliable recoil systems. A tough die-cast ratchet housing protects the inside spring from hard hits. Workers pull out the exact amount of webbing needed for big equipment. The spring reel pulls back extra material automatically when released. This self-winding feature keeps work areas clean, organized, and free of dangerous tripping hazards.
Standard 2-inch polyester webbing has a breaking strength from 6,000 to 12,000 pounds. The strong frame of retractable ratchet straps fits this tough material into a sealed case. Drivers complete daily hauling jobs with much faster speeds. Retractable ratchet straps handle tough transport jobs without any trouble. Workers store the webbing neatly inside the case after unloading cargo using these retractable ratchet straps.
Marine and Transom Retractable Straps
Boat owners need reliable tools to secure their watercraft for transport. Marine retractable straps attach boat sterns directly to trailer frames for maximum stability. Fixed designs keep your equipment ready for fast use at the dock. Operators swap out regular ratchet straps for these convenient built-in trailer units. Drivers save time at the boat ramp because the webbing stays attached to the trailer.
Bolt-On Transom Tie-Downs
Boaters mount these fixed units onto trailer sterns to secure boats fast. The easy installation process takes four simple steps:
- Pick a strong mounting spot on your trailer frame.
- Drill a 1/2-inch hole at your chosen location.
- Attach the ratchet housing using a bolt, washer, and nut.
- Push the handle down, press the button, pull the strap, and pump to tighten.
This permanent setup prevents lost hardware while driving on fast highways. Good alignment protects the boat hull from costly structural damage. Operators pull the tough webbing straight toward the transom eye. The internal spring pulls back extra material right away. Standard ratchet straps rust fast without special coatings, but marine retractable units resist rust. This automatic action stops loose webbing from dragging along rough roads.
Corrosion-Resistant Boat Fittings
Saltwater damages bare metal hardware very quickly. Special protective coatings guard marine tie-down parts against rust and salt water. Makers test these metal parts in tough weather to ensure a long product life. Standard tests measure endurance under extreme outdoor exposure:
Marine Equipment: 500 to 1000+ Hours
Marine hardware uses special hook designs to hold loads tight on bumpy roads. These marine ratchet straps keep heavy sterns stable during sharp turns. The chart below lists common hook choices:
| Strap Model | Safety-Latched Hook Type |
|---|---|
| Two-Way Retractable | S-hook with integrated safety latch |
| Dual Lock Ultra Stainless Steel | S-hook featuring a safety latch (referred to as safety-latch S-hook) |
Safety latches keep hooks from slipping off transom eyes. Stainless steel parts offer total rust protection during frequent boat launches. Boaters trust these strong ratchet straps for safe travel on open highways. A retractable reel keeps your work area neat and organized.

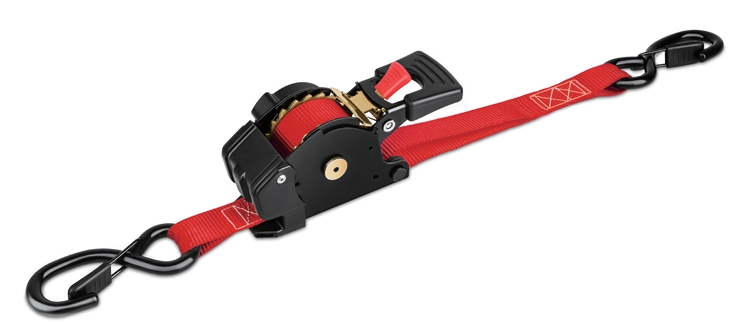

Light-Duty Retractable Tie-Down Straps
1-Inch Straps for Light Cargo
Homeowners and everyday drivers carry small loads every week. People move items like dirt bikes, lawnmowers, and couch sets across city streets. Small 1-inch webbing models hold items safely without heavy metal pieces. Inner springs help these retractable units work easily during quick loading tasks.
FTrade creates these simple tie-down products in the Easy Series for general tasks. These tools offer a 500 lbs Working Load Limit and a 1,500 lbs assembly breaking strength. Drivers keep these small ratchet straps inside toolboxes or beneath car seats. Old standard ratchet straps take up too much space, while modern retractable ratchet straps roll up inside their cases.
S-Hook and J-Hook Options
End connectors hold cargo tightly to vehicle attachment spots during short rides. Tough steel S-hooks clip to regular trailer rings easily. Soft vinyl-coated double J-hooks shield shiny metal rails and fresh paint from ugly scratches. Users lock light cargo down safely without harming truck beds.
Picking new retractable ratchet straps speeds up prep work for everyday hauling jobs. Users pull out the needed webbing length and clip hooks to the truck frame. Inner springs pull in extra material right away to keep the line tight. Extra webbing on old ratchet straps usually gets tangled near trailer tires, but inner spring reels keep lines neat. Drivers finish loading jobs quicker and swap old ratchet straps for these tough retractable straps to stay organized.
Specialized Mounted Retractable Ratchet Straps
Track-Mounted E-Track Systems
Track-mounted systems bring distinct practical advantages to fleet operators. These systems stay permanently attached to the truck interior. Drivers access these built-in tools faster than loose tie-down products. Mounted units clear floor space and prevent clutter inside commercial enclosures. Using a retractable design keeps straps ready for immediate work.
Operators connect these units directly to existing anchor rails without specialized hardware. Quick installation steps improve daily workflow:
- No additional tools or parts are required if you already have an E-Track rail system.
- Installation is as simple as clipping the mount into the rail and takes only seconds.
- No modifications to the vehicle or rail system are necessary.
The table below outlines specific load capacities for these retractable ratchet straps:
| Item | Load Capacity |
|---|---|
| E-track Adapter Strap WLL | 833 lbs |
| Working Load Limit (WLL) | 1500 lbs (680 kg) |
| Max Vehicle Weight (with wheel chocks) | 1986 lbs |
Fixed Frame and Trailer Mounts
Fixed frame mounts provide exceptional stability during heavy hauling applications. Drivers bolt housing units directly to trailer frames to secure boxed cargo. Built-in internal reels make the webbing fully retractable after unloading. This design eliminates loose ends that mess up loading areas. These sturdy ratchet straps simplify everyday hauling routines across short and long routes.
Fleet operators replace loose standard ratchet straps with fixed mounting designs to protect equipment. These permanently mounted retractable ratchet straps prevent lost hardware during long highway transport. Heavy-duty retractable ratchet straps anchor heavy cargo firmly to trailer decks. Drivers rely on strong ratchet straps for demanding hauling jobs every day.
Vehicle owners mount these specialized systems onto many truck models:
- Ford BoxLink: F-150, Raptor, Super Duty (2015+)
- L-Track (Cybertruck): Any L-Track rail system, including Cybertruck beds
- Chevy/GMC: Silverado & Sierra 1500/2500/3500 (2019+)
- Multi-Fit (Loop-Style Mounting Points): RAM 1500, Gladiator, Colorado, and more
- Toyota Bed Rail: Tacoma, Tundra (2007+)
- E-Track: Any E-Track rail system
- RAM 2500-4500: 2500/3500/4500 (2019+)
- Ford (Non-BoxLink): F-150 (1997-2014), Raptor (2010-2016)
| Category | Webbing | Application | WLL |
|---|---|---|---|
| Easy Series | 1-inch | Light cargo | 500 lbs |
| Transom Mount | 2-inch | Marine boat trailers | Direct bolt-on |
| Heavy-Duty | 2-inch | Commercial transport | 3,335 lbs |
Different types serve distinct transport needs. Buyers must check ISO 9001 certification to reduce field failure rates by 58%. Matching hardware ratings to total cargo weight prevents dangerous accidents during heavy hauling.
The FMSCA Cargo Securement Rules mandate that the combined Working Load Limit of all tie-downs must equal at least 50% of the cargo weight.
Insufficient Working Load Limit causes 48% of securement violations. Smart operators choose built-in retractable straps over basic manual tie-downs. Modern retractable ratchet straps organize equipment cleanly. Basic ratchet straps require tedious manual threading. Unprotected ratchet straps also damage easily in storage. Certified ratchet straps ensure complete safety on highways.
FAQ
How do retractable straps differ from standard ratchet straps?
Retractable straps have built-in spring reels inside strong cases. These inner parts wind up extra webbing when you let go. Standard ratchet straps require manual threading, which causes dangerous tangles.
What weight capacities do heavy-duty tie-down models handle?
Heavy-duty 2-inch models offer a 3,335 lbs Working Load Limit and a 10,000 lbs assembly breaking strength. Drivers pick these heavy-duty ratchet straps to hold big commercial loads securely.
How does the built-in spring reel improve workplace safety?
An inner spring reel pulls extra webbing into the case automatically. This retractable design keeps work areas clean. Drivers prevent tripping accidents because loose ends never drag on the ground.
Can users permanently install tie-down units onto trailer frames?
Yes, workers mount transom units onto trailer frames using simple bolts. Fixed ratchet straps stay attached during trips. Users save setup time and avoid losing loose ratchet straps on highways.
